Polyester expandable sleeving / GV-FR
PET expandable sleeving
Features
• flame-retardant
• abrasion resistant
• easy installation
Features
• flame-retardant
• abrasion resistant
• easy installation
Applications
V-FR Polyester expandable sleeving is flame-retardant and halogen-free.It offers durable abrasion resistance in a wide range of industrial applications.The open weave construction allows an easy installation on a bundle of hoses and cables,even if some with bulky or large connectors.Totally expanded sleeving can reach at least 1.5 times the initial dimension.
It's used for covering cables,wire harnesses,tubes,industrial hoses where is required an additional protection.
Specification/Approvals
UL/VW-1/RoHS/REACH/Halogen Free
Operating Temp
-40℃ to150℃

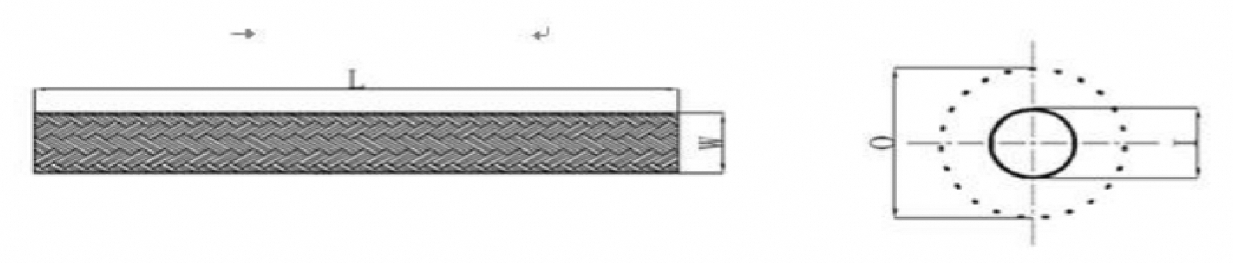

Dimensions
| Part no. | Flat width (W) | Expandable Range | Packaging | |||
| Inch | mm | Min.(I) | Max.(O) | (m/spool) | ||
| GV-FR-003 | 1/8" | 3 | 1 | 6 | 1000 | |
| GV-FR-006 | 1/4" | 6±2 | 3 | 9 | 500 | |
| GV-FR-008 | 5/16" | 8±2 | 5 | 12 | 350 | |
| GV-FR-010 | 3/8" | 10±3 | 7 | 17 | 350 | |
| GV-FR-012 | 1/2" | 12±3 | 8 | 20 | 300 | |
| GV-FR-016 | 5/8" | 16±3 | 10 | 27 | 250 | |
| GV-FR-019 | 3/4" | 19±3 | 14 | 30 | 200 | |
| GV-FR-025 | 1" | 25±5 | 18 | 33 | 200 | |
| GV-FR-032 | 1-1/4" | 32±5 | 20 | 50 | 150 | |
| GV-FR-038 | 1-1/2" | 38±5 | 30 | 60 | 100 | |
| GV-FR-045 | 1-3/4" | 45±10 | 35 | 75 | 100 | |
| GV-FR-050 | 2" | 50±10 | 40 | 80 | 100 | |
| GV-FR-064 | 2-1/2" | 64±10 | 45 | 105 | 100 | |
| GV-FR-076 | 3" | 76±10 | 64 | 120 | 100 | |
