Heat shrinkable braided sleeeving / GV-HSS
Features
• flexible
• abrasion resistant
• easy installation
Applications
GV-HSS Heat shrinkable braided sleeving consists of polyester multifilament and special modified polyolefin monofilament,it will shrink when expose to heat source,this unique woven construction
makes it extremely flexible,easy to install on the hoses with irregular shapes.It is suitable used in rough environments,provides excellent abrasion resistance and noise reduction.
It s widely used for protecting the rubber hoses,plastic pipes,wire harnesses from damage,and also resistance the noise and rattle suppression,make it suitable in automotive and other industrial fields.
Specification/Approvals
RoHS/Halogen Free
Operating Temp
-40℃ to150℃

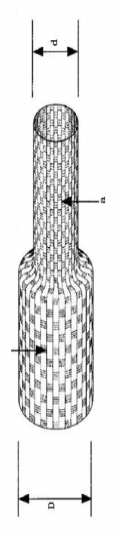

Dimensions
| Part no. |
Inner diameter before/after contraction （D/d）mm |
Flat width （W）mm |
Applicable outside diameter (recommended) φ mm |
Standard packing m/R |
| GV-HSS-010 | 10/5 | 18 +2/-2 | 5~8 | 400 |
| GV-HSS-018 | 18/9 | 32 +3/-2 | 9~15 | 250 |
| GV-HSS-020 | 20/10 | 37 +3/-2 | 10~16 | 200 |
| GV-HSS-025 | 25/12.5 | 43 +3/-2 | 13~20 | 100 |
| GV-HSS-030 | 30/15 | 56 +3/-2 | 15~24 | 100 |
| GV-HSS-034 | 34/17 | 57 +3/-2 | 17~27 | 100 |
| GV-HSS-040 | 40/20 | 68 +3/-3 | 20~32 | 100 |
| GV-HSS-050 | 50/25 | 83 +3/-3 | 25~40 | 100 |
| GV-HSS-056 | 56/28 | 94 +3/-3 | 28~45 | 100 |
| GV-HSS-060 | 60/30 | 97 +8/-5 | 30~48 | 100 |
| GV-HSS-070 | 70/35 | 115 +8/-5 | 35~56 | 50 |
| GV-HSS-080 | 80/40 | 130 +8/-5 | 40~64 | 50 |
| GV-HSS-090 | 90/45 | 143 +8/-5 | 45~72 | 50 |
| GV-HSS-100 | 100/50 | 160 +10/-5 | 50~80 | 50 |
