Braided sleeeving / GV-HSS

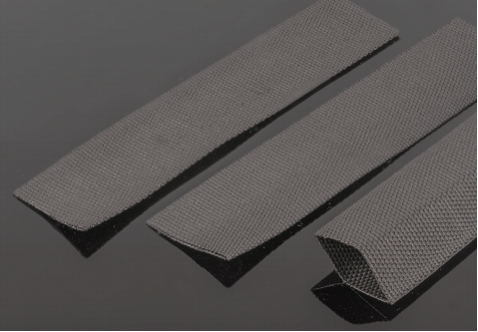

Heat shrinkable braided sleeeving
Features
◎ flexible
◎ abrasion resistant
◎ easy installation
Features
◎ flexible
◎ abrasion resistant
◎ easy installation
Applications
GV-HSS Heat shrinkable braided sleeving consists of polyester multifilament and special modified polyolefin monofilament. It shrinks when exposed to a heat source. This unique woven construction makes it extremely flexible and easy to install on hoses with irregular shapes.
It is suitable for use in rough environments, providing excellent abrasion resistance and noise reduction.It is widely used to protect rubber hoses, plastic pipes and wire harnesses from damage.
resistance the noise and rattle suppression,make it suitable in automotive and other industrial fields.
Specification/Approvals
RoHS/Halogen Free
Operating Temp
-40℃ to150℃
Dimensions
| Part no | Inner diameterbefore/aftercontraction （D/d）mm |
Flat width （W）mm |
Applicableoutsidediameter (recommended) Φ mm |
Standard packing m/R |
| GV-HSS-010 | 10/5 | 18 +2/-2 | 5~8 | 400 |
| GV-HSS-018 | 18/9 | 32 +3/-2 | 9~ 15 | 250 |
| GV-HSS-020 | 20/10 | 37 +3/-2 | 10~ 16 | 200 |
| GV-HSS-025 | 25/12.5 | 43 +3/-2 | 13~20 | 100 |
| GV-HSS-030 | 30/15 | 56 +3/-2 | 15~24 | 100 |
| GV-HSS-034 | 34/17 | 57 +3/-2 | 17~27 | 100 |
| GV-HSS-040 | 40/20 | 68 +3/-3 | 20~32 | 100 |
| GV-HSS-050 | 50/25 | 83 +3/-3 | 25~40 | 100 |
| GV-HSS-056 | 56/28 | 94 +3/-3 | 28~45 | 100 |
| GV-HSS-060 | 60/30 | 97 +8/-5 | 30~48 | 100 |
| GV-HSS-070 | 70/35 | 115 +8/-5 | 35~56 | 50 |
| GV-HSS-080 | 80/40 | 130 +8/-5 | 40~64 | 50 |
| GV-HSS-090 | 90/45 | 143 +8/-5 | 45~72 | 50 |
| GV-HSS-100 | 100/50 | 160 +10/-5 | 50~80 | 50 |
